A
PART NUMBER
CPL-259-10
CABLE
RG-59 PLENUM,
RG-62
WIRE
GAUGE
22
WIRE
DECIMAL
0.64
JACKET
O.D.
4.07-5.21
CRIMP CRIMP
(BRAID HEX ) (STRAIN RELIEF)
5.97 NONE
COUPLING NUT
CONTACT
CRIMP HEX
1.65
RECOMMENDED
CRIMP TOOL
24-8857P
BODY ASSEMBLY
DRAWING NO.
CPL-259-10
REVISIONS
RELEASE FOR QUTATION
11-04-05 W W T
D
CRIMP SLEEVE
D
C
JACKET
CRIMP SLEEVE
BRAID
CENTER CONNECTOR
COUPLING BODY
TRIM EXCESS CENTER CONDUCTOR
CRIMP
C
B

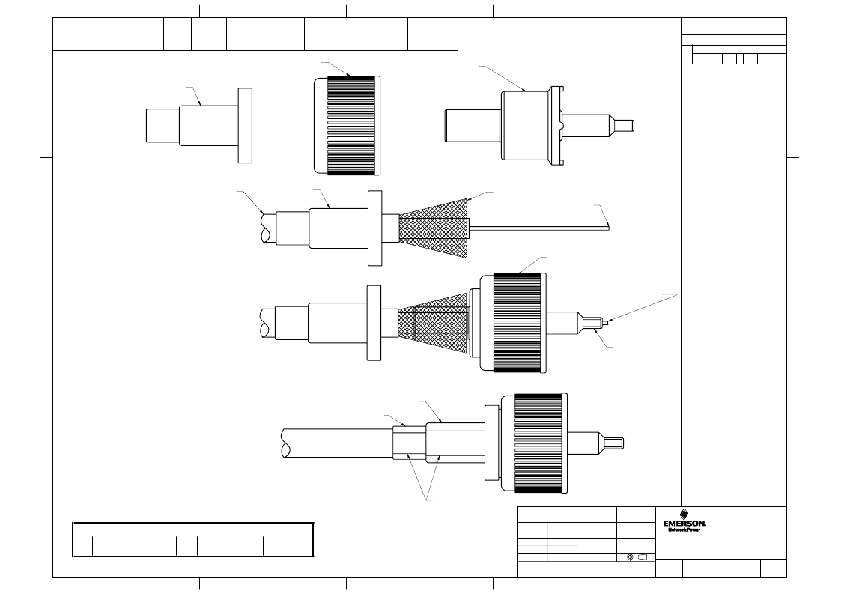

ASSEMBLY INSTRUCTIONS
1. IDENTIFY CONNECTOR PARTS. (3 PIECE PARTS)
2. SLIDE CRIMP SLEEVE OVER CABLE AND STRIP CABLE
TO DIMENSIONS SHOWN. DO NOT NICK CENTER CONDUCTOR
DURING STRIP OPERATIONS.
(BRAID HEX)
(STRAIN RELIEF)
B
+ - 0.2
A
3. SLIDE COUPLING NUT ONTO THE CONNECTOR BODY.
THEN SLIDE THE CONNECTOR BODY OVER CABLE SO
THAT THE CENTER CONDUCTOR EXTENDS THROUGH THE
FRONT OF THE CONTACT. CRIMP OR SOLDER THE CONTACT
AS SHOWN. TRIM AWAY THE CENTER CONDUCTOR
EXTENDING PAST THE CONTACT.
4. ARRANGE BRAID UNIFORMLY AROUND CRIMP STEM.
SLIDE CRIMP SLEEVE OVER BRAID AND CRIMP
SECURELY USING RECOMMENDED CRIMP TOOL.
CONTROLLED DOCUMENT
CPL-259-10 0A May24,08
P/N Rev Rel'd Date
5
4
3
CRIMP
TOLERANCE UNLESS DRAWN BY DATE
OTHERWISE SPECIFIED IVON.WANG 10-25-05
DECIMALS mm CHECKED BY DATE
-
X + 0.5 LINDA.WU 11-04-05
X.X APPROVED BY DATE
-
X.XX + 0.1 THOMAS 11-04-05
-
ANGLES + 0.5 v U/M mm
THIS DRAWING WAS PRODUCED BY COMPUTER,
DO NOT SCALE DRAWING OR UPDATE MANUALLY.
2
TITLE
THIS DRAWING TO BE INTERPRETED
PER ANSI Y 14.5M - 1994
COMPANY CONFIDENTIAL
Connectivity
Solutions
UHF STRAIGHT CRIMP TYPE
PLUG FOR RG-59 RG-62
SHEET DRAWING NO. SIZE
2 OF 2 CPL-259-10 C
1
A
